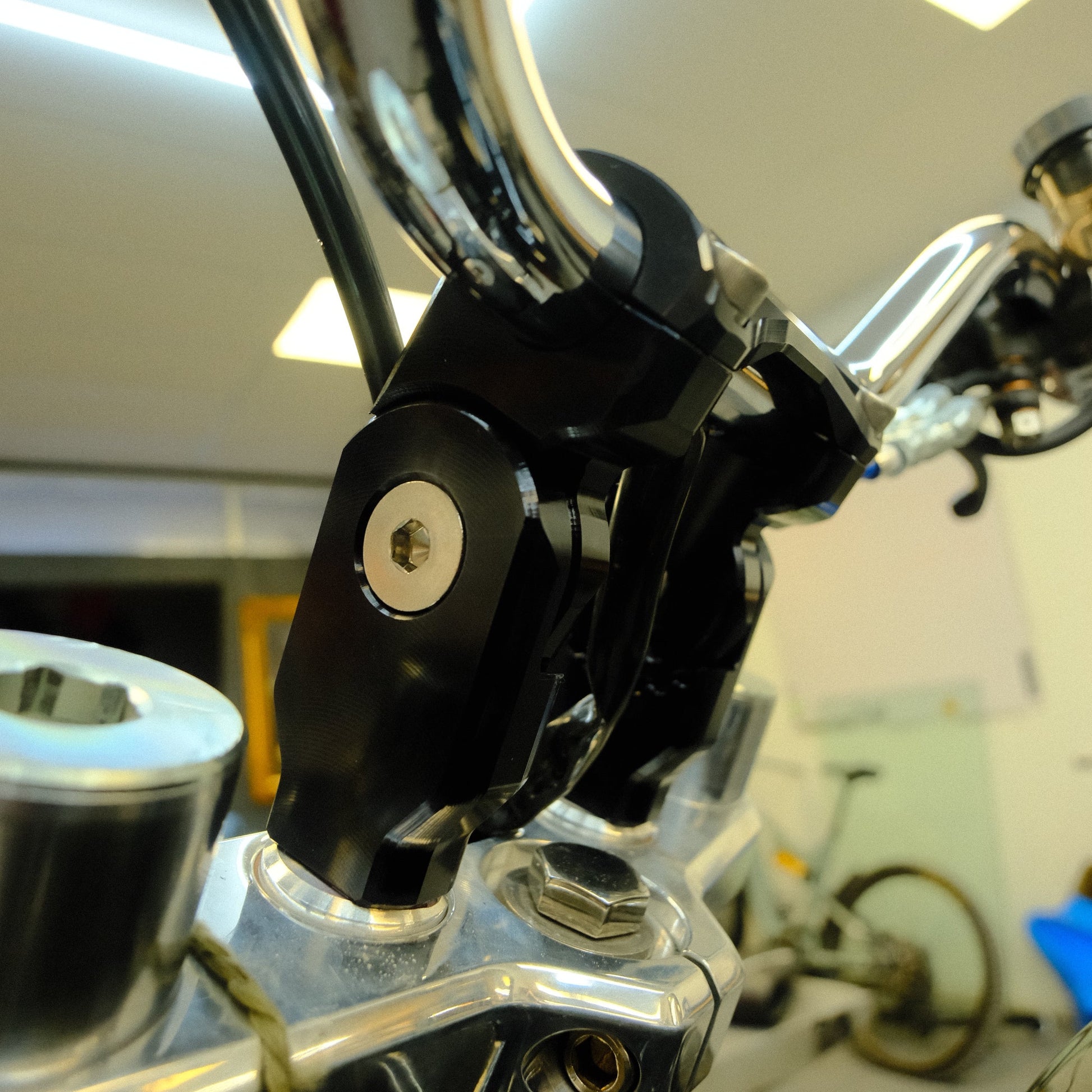

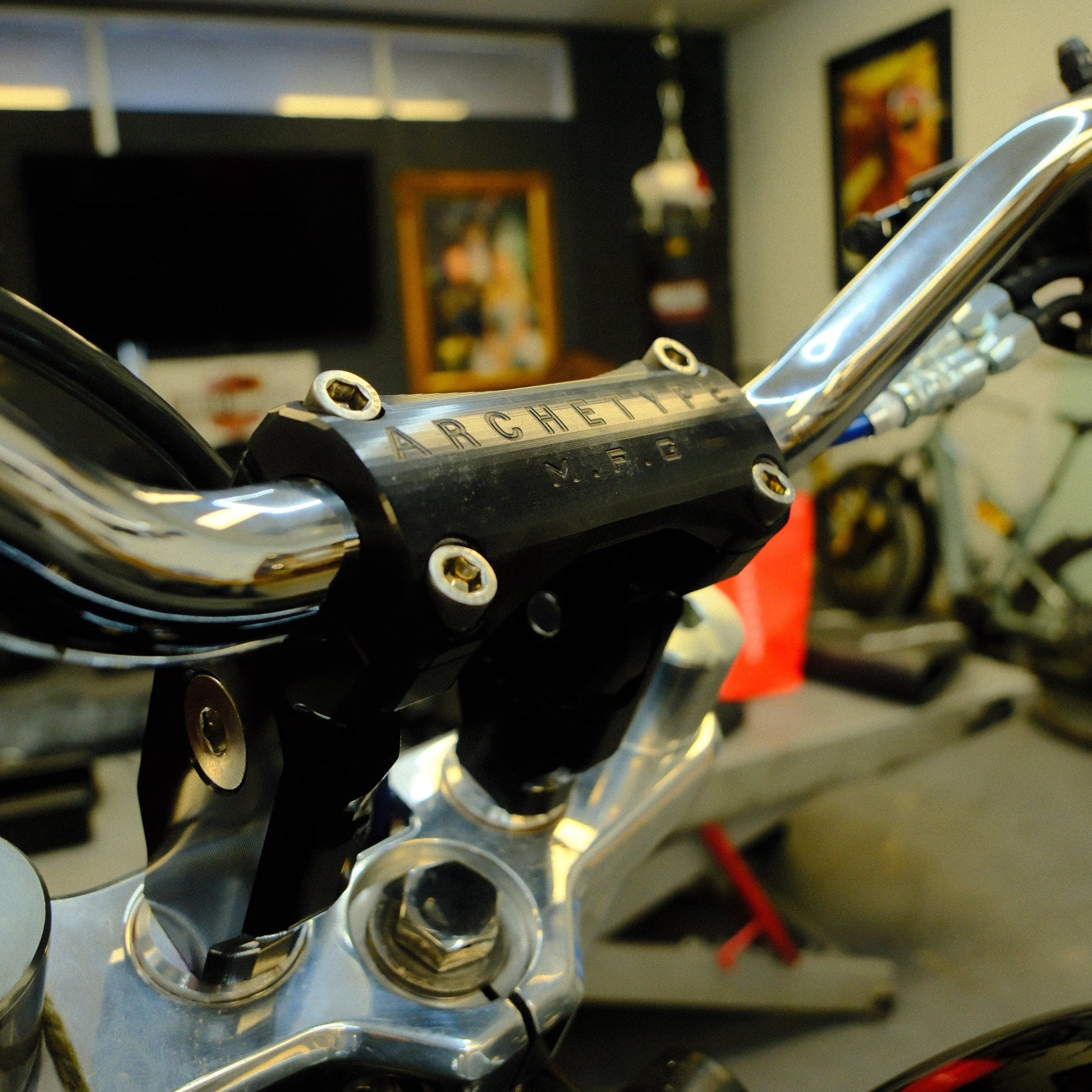

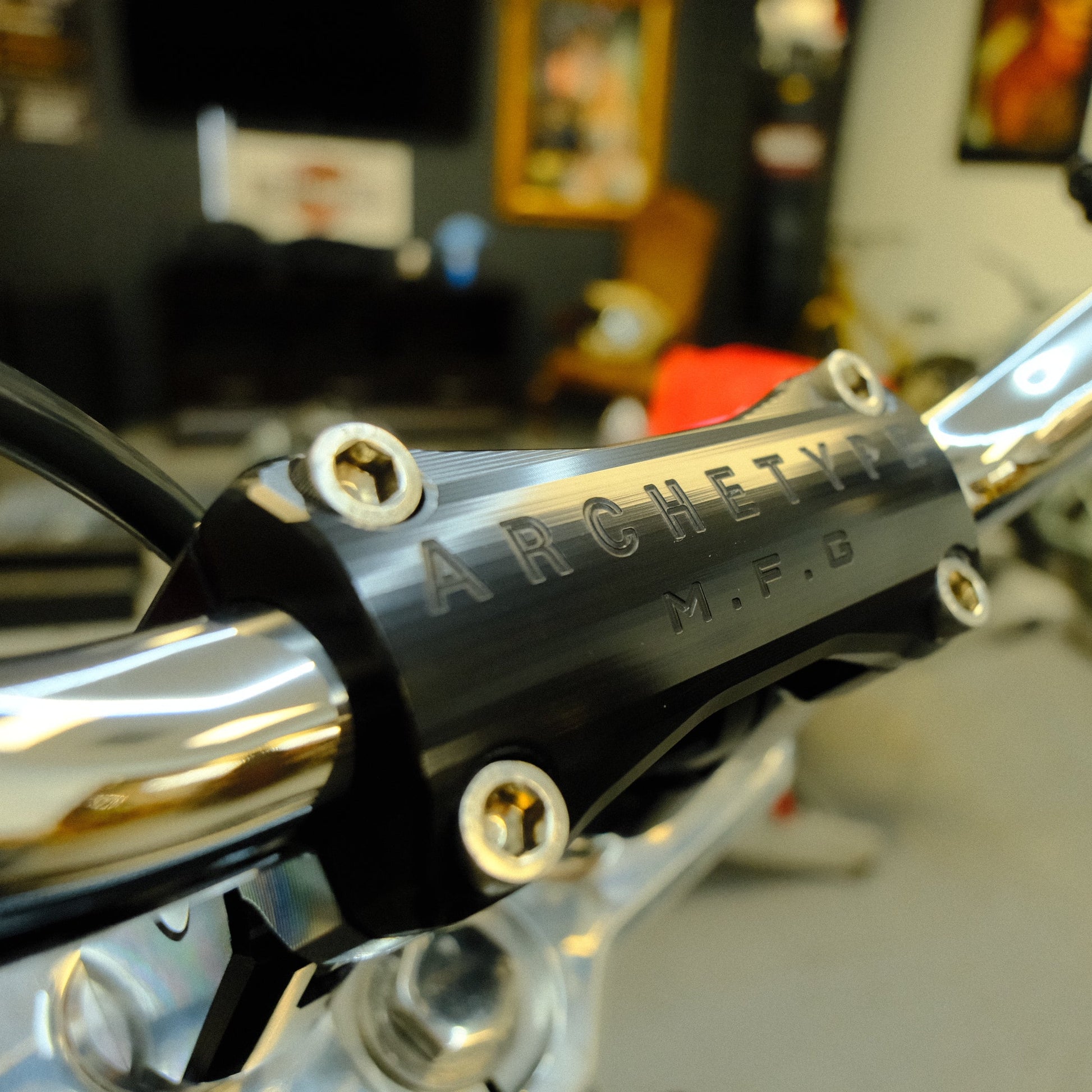

Archetype MFG “R/T” Signature Riser

• Archetype MFG “R/T” Signature Riser assembly
• Stainless steel riser assembly hardware

Exclusive R/T Signature Design
Designed in collaboration with Ryan and Trent of Kruesi Originals, the R/T Signature Riser features a proprietary 4" height built specifically for performance Harley applications.

Fully Adjustable Pullback
Allows the rider to fine-tune handlebar position through incremental 15-degree angle adjustments, including 45°, 60°, 75°, and 90° positions.

Built for Race, Stunt, Drift, and Performance Builds
Designed for riders who demand maximum control, adjustability, and cockpit feel from their handlebar setup.

Used on Kruesi Originals Performance Builds
The R/T Signature Riser has been used on Kruesi Originals builds including RH975 Nightster Dirt Bikes and the M8 Softail Drift Bike.

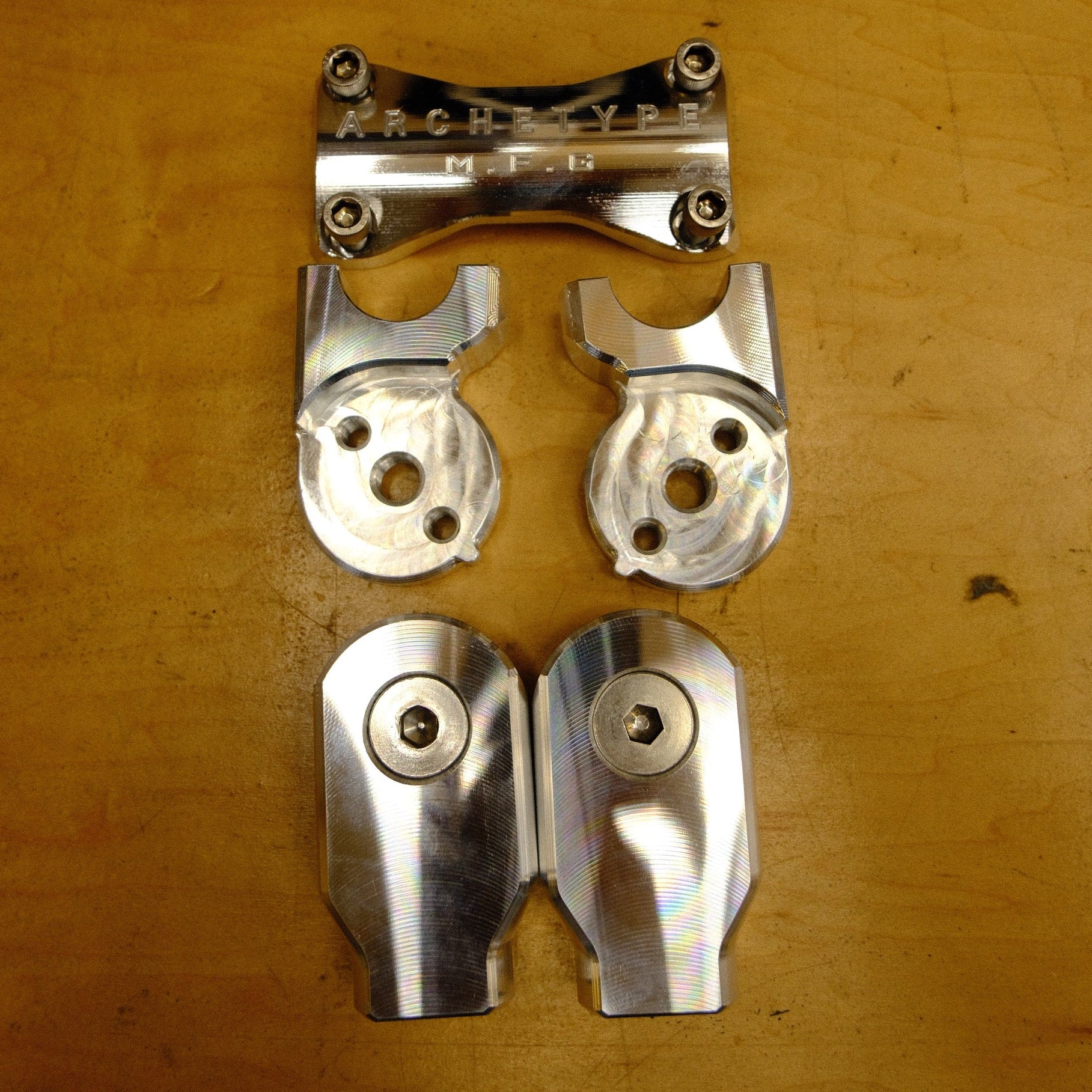

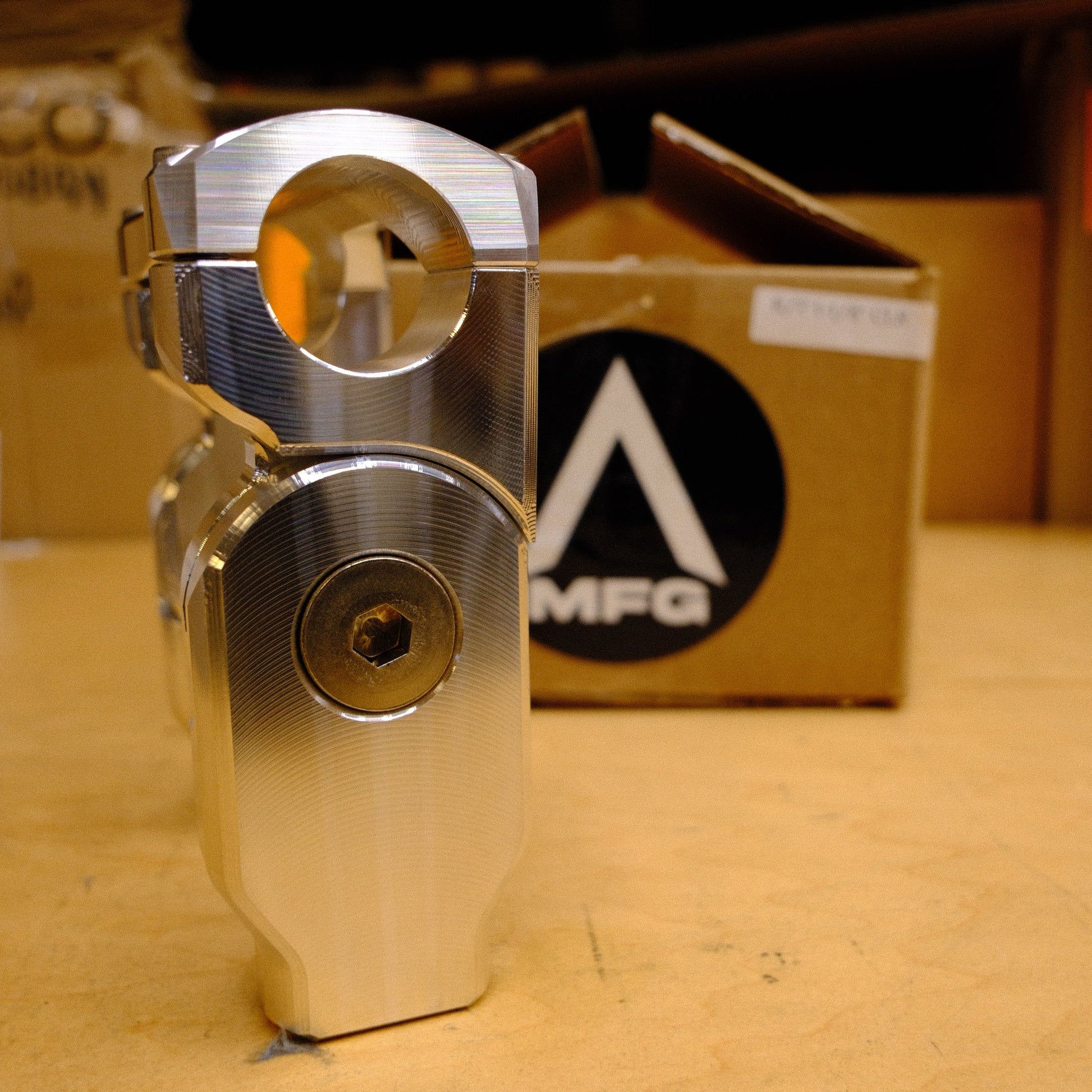

Billet 6061 Aluminum Construction
Machined from billet 6061 aluminum for strength, precision, and a premium fit and finish.

4" Height Design
The proprietary 4" height offers a compact, performance-focused riser position for riders who want control without excessive height.

Standard Harley Riser Mounting
Utilizes standard 3.5" center-to-center riser mounting, making it compatible with many Harley-Davidson models using standard riser spacing.

Standard 1/2"-13 Riser Bolt Compatibility
Mounting holes are designed for standard 1/2"-13 riser bolts.

1" or 1-1/8" Handlebar Options
Available for either standard 1" handlebars or oversized 1-1/8" handlebars, allowing riders to match their preferred bar setup.

Stainless Steel Hardware
Includes stainless steel hardware for durability, corrosion resistance, and a clean premium installation.

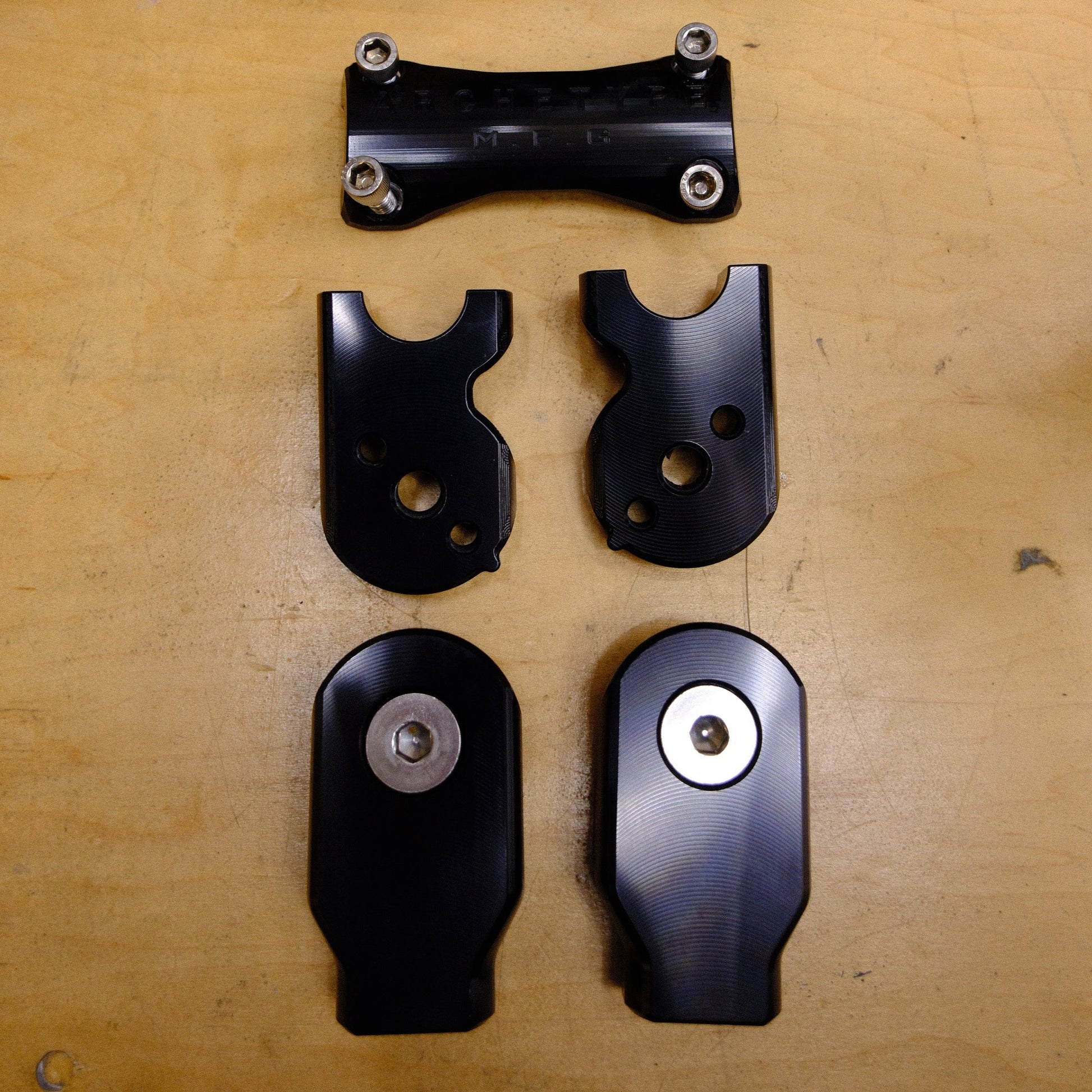

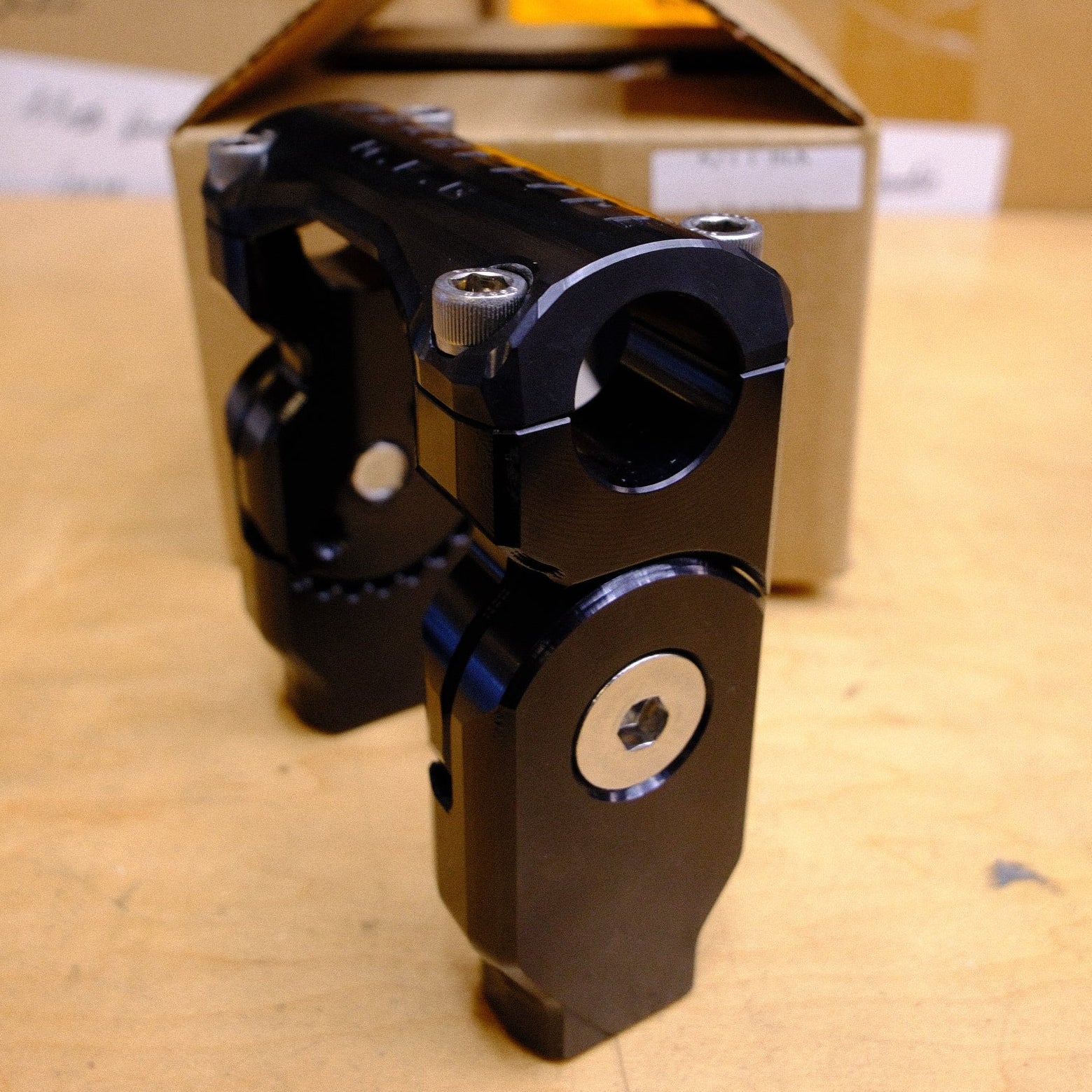

Clear or Black Anodized Finish
Available in clear or black anodized finish options to match your build style.

Designed, Engineered, and Manufactured in Canada
Built in Canada with premium machining, design, and manufacturing standards.

Fits:

• Harley-Davidson models with standard 3.5" center-to-center riser mounting
• Available for 1" handlebars and 1-1/8" handlebars
• Utilizes standard 1/2"-13 riser bolts
• Riser mounting bolts are sold separately

IMPORTANT FITMENT NOTES:
RH975 Nightster owners will need to bore out the riser mounting holes on the top triple tree to accept 1/2-13" riser mounting bolts (We HIGHLY advise a professional do this to ensure the holes are drilled to the correct size and are drilled straight. In addition you will need to select the 1-1/8" clamp size option and utilize a dirt bike style handlebar that tapers from 1-1/8" at the clamping area down to 7/8" at the controls, such as the ODI CFT Podium Handlebars. We personally use the "RC High Bend" on our RH975 Nightster builds.

M8 Softail owners with a digital top clamp gauge will need to purchase a "Digital Top Clamp" (only available for 1" handlebars).

Always confirm your exact year, model, riser spacing, handlebar diameter, cable length, brake line length, wiring length, and gauge setup before ordering.

What is the Archetype MFG R/T Signature Riser?
The R/T Signature Riser is a 4" adjustable billet handlebar riser designed in collaboration with Ryan and Trent of Kruesi Originals for performance Harley-Davidson builds.

What makes the R/T riser different?
It features an exclusive 4" height and fully adjustable pullback through 15-degree incremental positions, making it ideal for riders who want a shorter, highly adjustable riser setup.

What angle adjustments are available?
The riser can be adjusted through 45°, 60°, 75°, and 90° positions.

What handlebar sizes are available?
The R/T Signature Riser is available for 1" or 1-1/8" handlebars.

What models does this riser fit?
It fits Harley-Davidson models with standard 3.5" center-to-center riser mounting.

What riser bolts does it use?
These risers use standard 1/2"-13 riser bolts.

Are riser mounting bolts included?
No. Riser mounting bolts are sold separately.

What is it made from?
The risers are machined from billet 6061 aluminum.

What finish options are available?
The R/T Signature Riser is available in clear anodized or black anodized finish.

Is this good for stunt or drift builds?
Yes. This riser was designed for race, stunt, drift, and performance builds where handlebar control and adjustability are important.

Where are these risers made?
They are designed, engineered, and manufactured in Canada.

Is professional installation recommended?
Professional installation is recommended to ensure proper riser fitment, angle setup, cable routing, brake line clearance, wiring clearance, and hardware torque.
